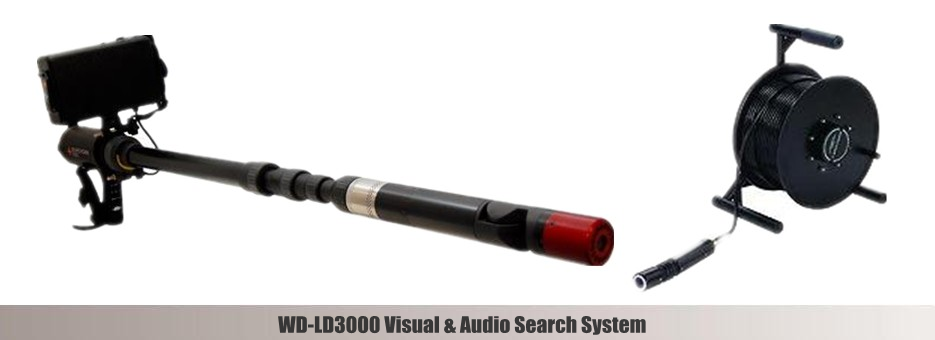

WD-LD3000 Life Detector

LifeCam, The Ultimate Victim Location System, is a state of the art technical search and rescue device designed to quickly and accurately pinpoint the location of victims of structural collapse and similar confined space rescue situations. The system combines a high resolution color video camera, sensitive search microphone, speaker, and light source into a fully articulating, remote controlled, telescoping probe. On-screen system status graphics insure that the operator can monitor the system without diverting either sight or attention from the search task.

The LifeCam comprises a telescopic boom with an infrared camera, able to turn through 360, fixed to the end and connected to a portable control box with a screen. With the LifeCam, it is possible to explore the ruins and communicate with a victim via the microphone incorporated in the camera.

The LifeCam can be used :
- to rescue buried victims,
- for surveillance and maintenance of technical equipment,
- for inspecting loads (Customs and Excise, etc.),
- archaeological work, etc

As recommended in the national reference guide, rescue clearance vehicles or teams must be equipped with at least one electronic visual search pack.
1:Camera:1/3 sony CCD,480 lines,170° wide-angle ,automatically rotate (-90° to +90°)
2:12 high brightness LED light around the Camera, make sure to collect color video in night
3:High power speaker & microphone :calls clearly within 10 meters (Equipped with headset & microphone for staff also)
4:300cm Telescopic boom
5:20m Video Display Extension Cable
6:High-definition monitor with DVR (7 inch)
7:2 rechargeable battery,(10000 mah)can work continuously for 24 hours or more;
8:Packing by a  advanced unibody toolbox (WANDERFUL)
