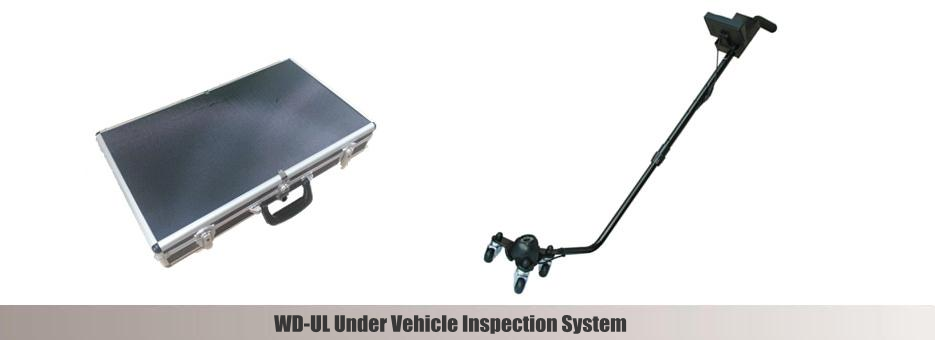

WD-UL Under Vehicle Inspection System

WD-UL is a economic model under vehicle search camera for daily searching.
You can choose DVR built-in type to record what you’ve seen for future inspection.
It comes with a 4.3 inches LCD monitor, a dome IR camera and a battery house.
The trolley edge is been optimized and it have plastic caps to protect the
vehicle from scratching. The monitor can set brightness by buttons.
We use dual-ball bearing multi-direction wheels for longer using age.
The special dome camera provides a lower profile to search low sedans.

Specifications

Monitor: 4.3″ color LCD monitor with 640*480 high resolution tilt by hand.

Camera: Color CCD dome camera with up to 10M IR lighting, tilt manually.

Battery: 2800mAh Li battery for up to 5 Hrs using.

Rods: Aluminum 90cm to 110cm extension-able with EVA soft handle.

Charger: 110~230VDC switch power adaptor.
Profile of trolley: 10cm including camera.
Trolley: Dual-ball bearing high quality multi-direction wheels 3PCS

Length of max penetration: 30cm

Optional
DVR built-in model CS-ULD
Support 32G SD card max
Resolution up to 720*480(NTSC) / 720*576(PAL)
Frame per second up to 30fps(N) / 25fps(P)
Support: reservation / motion detection / real-time recording
User 12VDC power
On screen OSD
Remote controller type

Package & Shipping
Weight: 2KG
Packing: 640*350*110mm
Warranty
12 months, Limited parts
